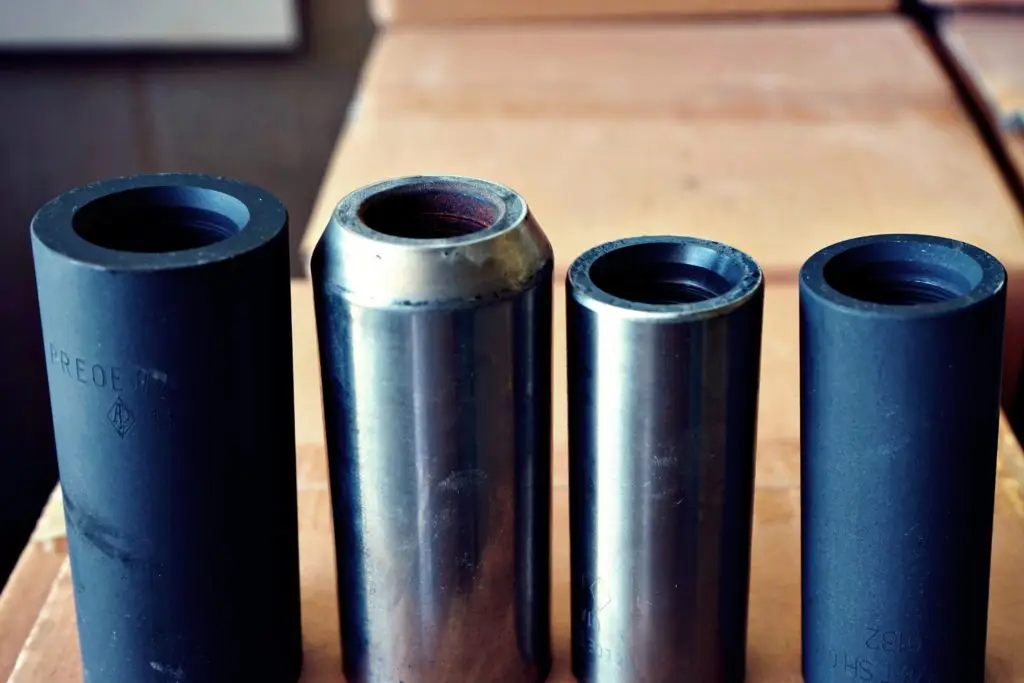

Grade T and Spray Metal couplings in standard full size and slim hole size. Cross-over couplings and polish rod couplings are also available upon customers’ request.
The Ellis Shear Tool is run above the pump to enable easy retrieval of the rod string. Ellis Shear Tools are used with fiberglass sucker rods to retrieve the rod string in case of a stuck pump preventing costly fishing jobs. Ellis Shear Tools are designed to fail at an accurate pre-determined breaking load.
It is recommended to clear tight spots in the tubing string and clean any paraffin present in the well before installation to prevent premature failure of the shear tool caused by impact load when the pump scopes out through paraffin or a tight spot.
High-quality machining processes adopted at Ellis Manufacturing allow us to maintain extremely close tolerances and produce components with smooth surface finishes and chatter-free threads. CLICK HERE to visit Ellis for more information.
SHEAR TOOL
APPLICATIONS
• Wells with fiberglass sucker rods
• Wells with high solids environment potential for stuck pumps
BENEFITS & FEATURES
• Disconnect rod string at a pre-set location
• Minimizes wet string pull jobs when the pump is stuck
• Enables easy retrieval of the rod string
• Accurate pre-determined breaking load
• Available for 3/4-in, 7 /8-in, and 1-in sucker rod pin
The Ellis Heavy Duty On-Off Tool gives the ability to connect and disconnect the sucker rod string at a pre-determined location. This eliminates the need for pulling a wet tubing string when the pump is stuck. It also gives the ability to run an oversized tubing pump without replacing the entire tubing string. To unlatch the tool, make a 1/4 turn to the right while engaging the clutch on the pump.
The Ellis Heavy Duty On-Off Tool is available in a variety of high strength corrosion resistant materials. Proprietary heat treatment on 4140 alloy steel eliminates residual stresses and gives an extremely high endurance limit for undergoing continuous cyclic loading.
High resilient spring design provides the right amount of resistance to easily latch and unlatch the tool while preventing premature release.
High quality machining processes adopted at Ellis Manufacturing allows us to maintain extremely close tolerances and produce components with smooth surface finishes and chatter free threads. CLICK HERE to visit Ellis for more information.
ON OFF TOO
L
APPLICATIONS
• Any Sucker Rod Pump
• Ability to run oversized tubing pump
BENEFITS & FEATURES
• Disconnect rod string at pre-set location
• Minimizes wet string pull jobs when the pump is stuck
• 1/4 turn right hand unlatch design
• Proprietary heat treatment process for 4140 material to eliminate residual stresses and obtain high fatigue strength
• Heavy duty design with high fatigue load rating
• Available in high strength corrosion resistant materials
• High resilient spring to prevent premature release
• Machined to extreme close tolerances to eliminate unintended play for different well bore conditions

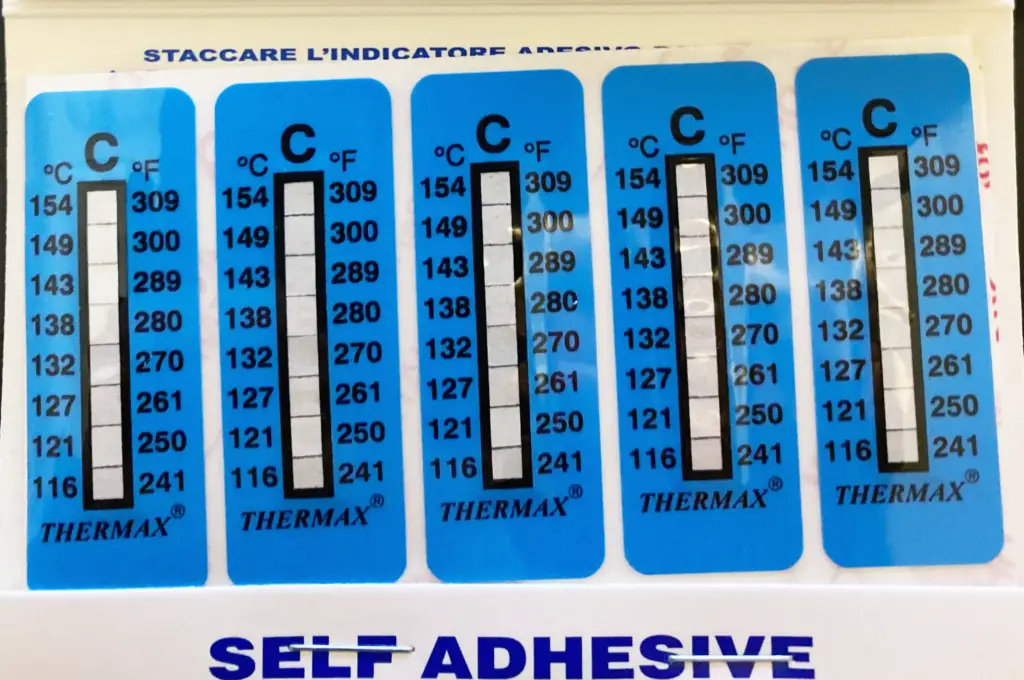

Thermometer Stickers for the High-Temperature Tools

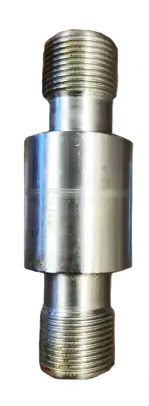

Superod® Temperature Tools are required in any high-temperature environment. We prefer three per rod string.
One at the sinker bars section. One at glass/steel transition. One at the top of the well.
